Set the AC Outlet on Converters

If your TV went to the wrong input channel when you turned it back on:

• Some converters have an additional electrical plug for your TV or other device

• Setting it to the wrong mode could cause this to happen

• If you are not sure which set of instructions to use below, check the User Interface on your TV


• Click here to discover your User Interface

1. Press Menu twice

2. Select Settings (usually on second screen)

3. Select Cable Box Setup

4. In the AC Outlet area, change the setting to:

   • Unswitched: outlet stays on when the converter turns off; recommended for newer TVs

   • Switched: outlet cuts power to the TV when the converter turns off

5. Note: when turned back on, the TV may default to another input channel or volume level

DVR outlets cannot be switched off; they always remain on

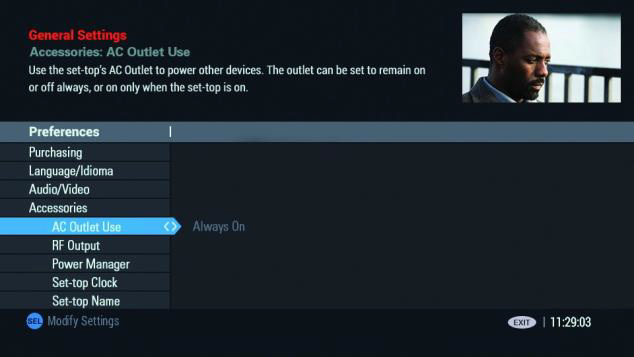

1. Press the MENU key twice to reach the General Settings page

2. Scroll down to Accessories and press Select

3. Choose AC Outlet Use, and press OK

4. The AC Outlet field should be set to:

   • Always Off - No power to this outlet (safety reasons)

   • Always On - when you do not want the TV power to shut off when the converter turns off - recommended for newer TV's

   • On with Set top - when you want the TV power cut when the converter turns off

5. Press OK on your remote to lock in your change

6. Turn off the converter, and turn it back on. The TV should now turn off independently from the box

1. Press MENU twice to reach General Settings

2. Select Accessories, then AC Outlet Use

3. Set the AC Outlet field to:

   • Always Off : no power to this outlet

   • Always On: TV power stays on off when the converter turns off; recommended for newer TVs

   • On with Set Top: TV power is off with the converter

4. Press OK / Sel on the remote to confirm the setting

5. Note:  when turned back on, the TV may default to another input channel or volume level
