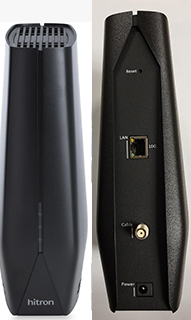

Hitron Technologies® CODA 60 Broadband Cable Modem

Hitron's CODA60 features the latest DOCSIS 4.0 technology, including Mid/High/Ultra-High tri-split, providing a flexible and optimized upstream and downstream experience. It can be deployed in DOCSIS 3.1 mode now and be upgraded to DOCSIS 4.0 mode when your plant is ready. The CODA6x enables you to connect your cable Ethernet through your building's cable connection.



Device Access Details
	No External Access is supported



Light Status Information

LIGHT DESCRIPTIONS Label Color Action Description Front Light GREEN Solid Solid if power is supplied Front Light GREEN / WHITE Alternating Flashing when the modem is searching for downstream signal Front Light WHITE Flashing Syncronization, configuration and system enablement Front Light WHITE Solid Online and Active Front Light WHITE / BLUE Alternating Software upgrade/downgrade in process Front Light RED Flashing DOCSIS issue (Ranging issue/no signal) Front Light RED Flashing Slow Provisioning issue Front Light RED Solid Hardware Failure Front Light RED / GREEN / BLUE Color Cycle After holding Reset button for 3 seconds, it is time to released the button to begin factory reset process



Device Documentation & Manual(s)
	Hitron Technologies® CODA 60 Broadband Cable Modem Data Sheet Hitron Technologies® CODA 60 Broadband Cable Modem Manual
